Specification of 8 Armature HiFi

2017.06.05

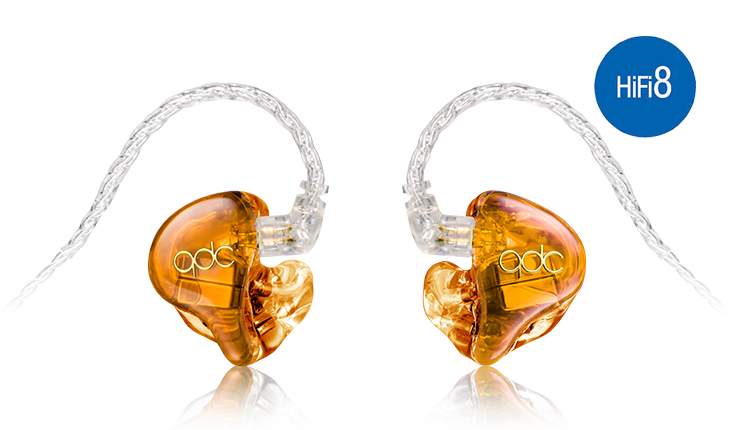

8 Armature HiFi (8CH/8SH), best option for music enthusiast.





Technical Specifications



Sensitivity: 112dB SPL/mW

Frequency response:

20Hz-20000Hz
DCR: 21Ω
Impedance: 22Ω
Armature units: 8 Micro balanced amarture at each side
Noise isolation: 26dB
Monitor plug: 3.5mm(1/8'') connector
Cable: Optional
Shell color: Optional
Technical feature: 3 sound channels, 3 crossover, natural restoring, superb music quality
Classification: Customization, univerSal
Recommend: Listening and Music enthusiast

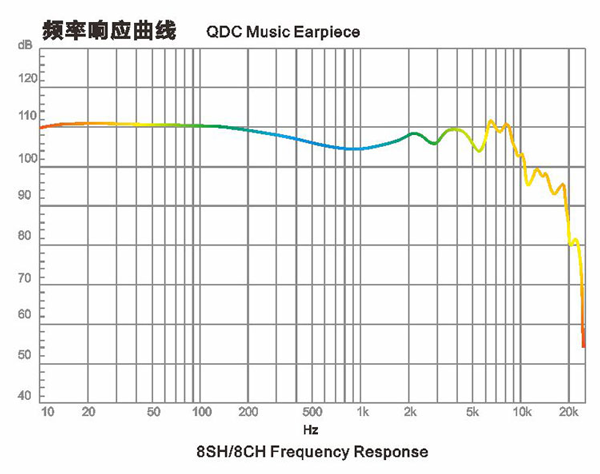

                 Frequency Response







                 Driver Configuration





                    Notes:This is the latest version, may have little difference with before.
